CP PLUS

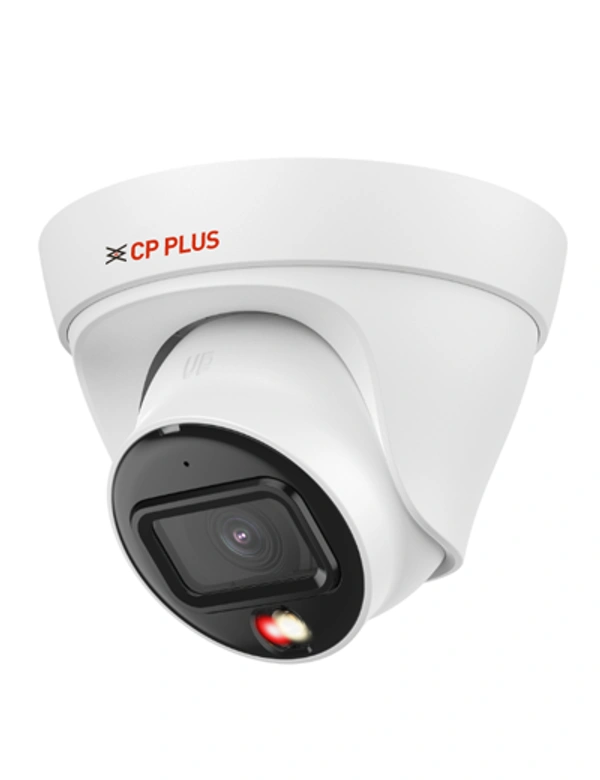

CP PLUS 2 MP IP illumax DOME CAMERA CP-UNC-DA21L3C-LQ
₹ 2,596 / Piece
| Image Sensor | 1/3” 4MP Progressive scan CMOS (0.84667cm) |
| Minimum Illumination | 0.03Lux@F2.0 |
| Effective Pixels | 2688(H) x 1520(V) |
| Lens | 3.6mm (2.8mm Optional) |
| Frame Rate | Main Stream: 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub Stream: 704 × 576 (1 fps–20/25 fps) 704 × 480 (1 fps–20/30 fps) |
| Gain Control (AGC) | Auto/Manual |
| ICR | Auto (ICR)/Color/B/W |
| Privacy Mask | 4 Area |
| S/N Ratio | N/A |
| Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Angle of View | 3.6mm: Horizontal: 81° Vertical: 44° Diagonal: 95° 2.8mm: Horizontal:93° Vertical: 53° Diagonal: 111° |
| Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP, ONVIF (Profile S/Profile G); CGI; Milestone; Genetec; InstaOn |
| ROI | Yes (4 areas) |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Motion Detection | Off / On (4 area, Rectangle) |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
| Video Compression | H.265+/H.265/H.264+/H.264/ H.264B/ MJPEG |
| Bit Rate | CBR/VBR |
| IR | IR Range of 30 Mtr. |
| Operating Temperature | -40°C~+55°C , Less than 95%RH |
| Smart Phone | iPhone, iPad, Android Phone |
| Power Source | DC12V,PoE (802.3af) |
| Power Consumption | <5.1W |
| Ethernet | RJ-45 (10/100Base-T) |
| Casing | Metal + Plastic |
| Dimension | 85.5 mm × Φ109 mm |
| Weatherproof Standard | IP67 |
| Weight | 0.25kg |
