CP PLUS

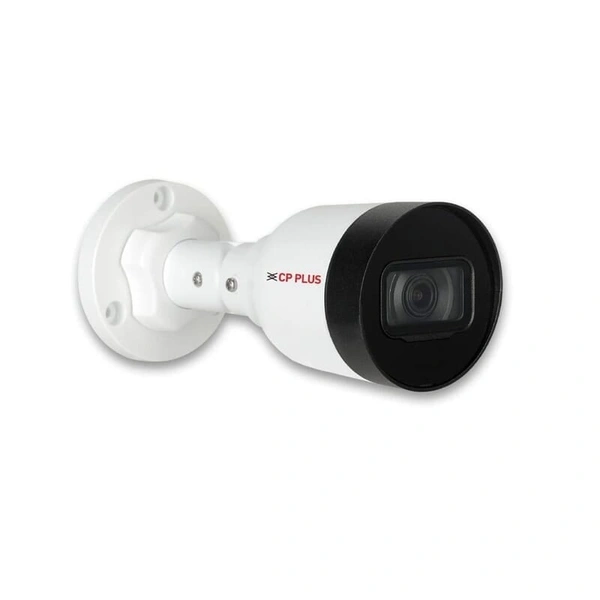

CP PLUS 2MP IP Hybrid Bullet CP-UNC-TA21L2C-GP-V3 2MP
₹ 2,250 / Piece
|
Feature |
Details |
|---|---|
|
Model |
CP-UNC-TA21L2C-GP-V3 + USEWELL RJ45 |
|
Image Sensor |
1/2.8” 2 Megapixel PS CMOS Image Sensor (0.9071 cm) |
|
Built-in Features |
Built-in Mic, Built-in LEDs, IP67 Support, PoE |
|
Resolution |
Max. 2MP (1920 x 1080) @ 25/30fps |
|
Video Encoding |
Instastream and Smart H.264+ dual-stream encoding |
|
Image Features |
DWDR, Day/Night (ICR), 3D-NR, ROI, AWB, AGC, BLC, HLC |
|
Lens Type |
3.6mm fixed lens (2.8mm optional) |
|
Illumination Distance |
Built-in efficient LED illuminator, max. distance 20 meters |
|
Mobile Software |
iCMOB, gCMOB |
|
CMS Software |
KVMS Pro |
|
RAM & ROM |
64MB RAM, 16MB ROM |
|
Motion Detection |
ON/OFF, 4 rectangular areas |
|
Resolution Options |
1080P (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 (704 x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/352 x 240) |
|
Privacy Mask |
4 areas |
|
ICR (Infrared Cut Filter) |
Color/B/W |
|
ROI (Region of Interest) |
Yes (4 areas) |
|
Bit Rate |
H.264: 32 Kbps–6144 Kbps, H.265: 12 Kbps–6400 Kbps |
|
Protocols Supported |
IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast, ONVIF (Profile S/Profile T), CGI, InstaOn, Genetec |
|
Ethernet |
RJ-45 (10/100Base-T) |
|
SDK and API |
Yes |
|
User Account |
6 total |
|
Total Bandwidth |
36 M |
|
Browser Compatibility |
IE, Chrome, Firefox |
|
Illumination Distance |
20 meters |
|
Illuminator Number |
1 (Warm Light) |
|
Storage |
FTP |
|
Operating Temperature |
-40°C ~ +60°C (-40°F ~ +140°F), Less than 95% RH |
|
Storage Temperature |
-40°C ~ +60°C (-40°F ~ +140°F) |
|
Power Consumption (Basic) |
1.4W (12V DC), 2.2W (PoE) |
|
Max Power Consumption |
4.2W (12V DC), 5.3W (PoE) |
